Item No. BS-25

Low Flexible

Features Specifications Product Manual
Features
  • Super Strong Gel Pad Suction Base
  • Long Stay for Wide Dash
  • Flexible Stay
Specifications
Size63 x 275 x 35mm
Weight100g
MaterialABS, Gel
Product Manual
KOREANENGLISHCHINESEJAPANESE
Name of each part
  • a spinning ball
  • STAY.
  • an adsorption lever
  • Support
  • Absorption plate handle
  • an adsorption plate
How to Install
  • Remove any dirt or grease from the area to be fixed before attachment.

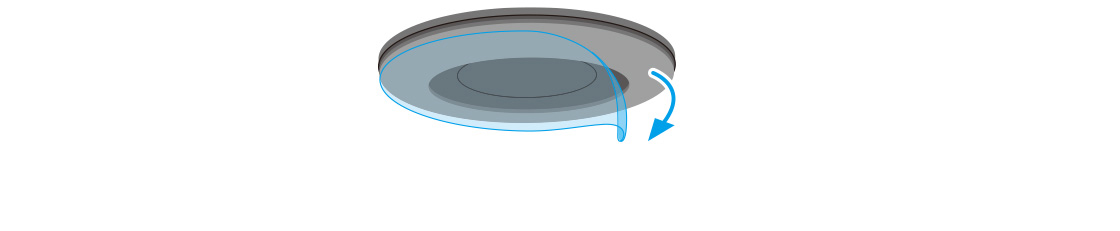

  • Lift the suction lever up and remove the gel pad protective paper.

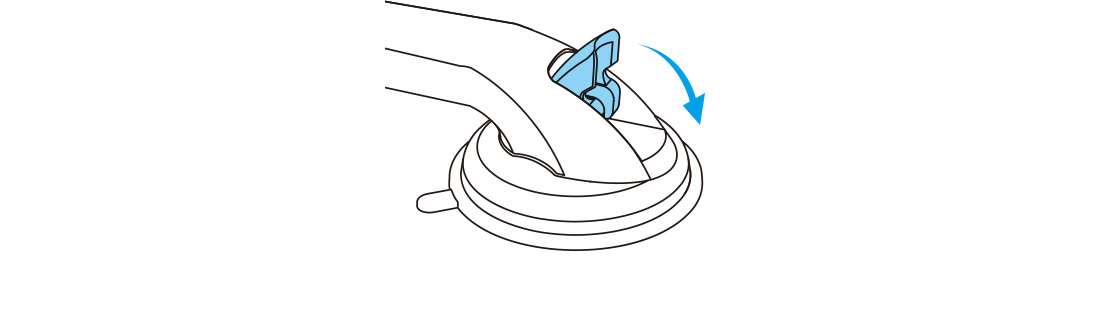

  • Bring the suction plate to the fixed area and press it hard, press the adsorption lever to adsorb it.
  • After adsorption, check the adsorption status by lightly pulling the adsorption plate.
    When removing the suction plate, tilt the lever up and pull the suction plate handle up.
  • Adjust the stay by bending it to the desired height and angle.
How to fix the support

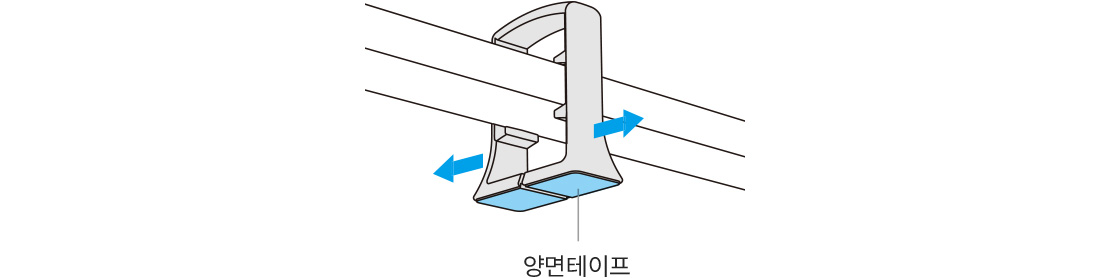

  • Spread the support on both sides and insert it into the stay.
  • Peel off the double-sided tape film on the support and attach it to the position to secure it so that the stay does not sag.
precautions
  • Please be careful if you fix the product in areas with rough surfaces such as carpets, artificial leather surfaces, and curved surfaces.
  • Fix the product at room temperature (about 15-25°C) as it may reduce adhesion if it is fixed in the cold or hot weather.
  • Check the fixed state of the suction plate from time to time so that the product does not fall due to vibration or direct sunlight while driving.
  • Adhesive gel pads attached to the suction plate may leave marks on the attachment surface if used for a long time. Traces can be removed with a neutral detergent and disappear naturally after a certain period of time.
  • Repeated transformations of the stay with excessive force can break the stay. Transform the stay with the right force and angle.
